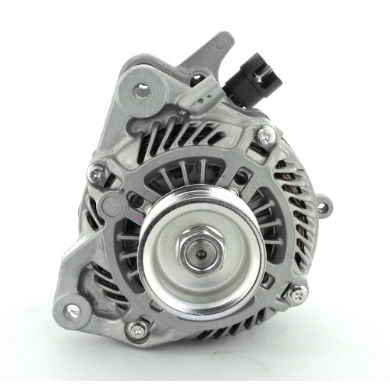

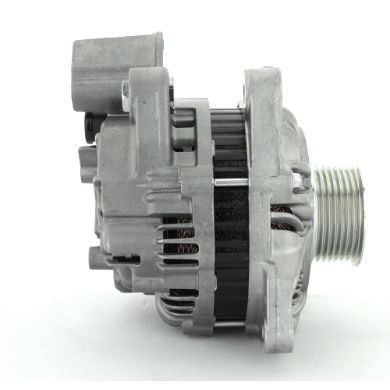

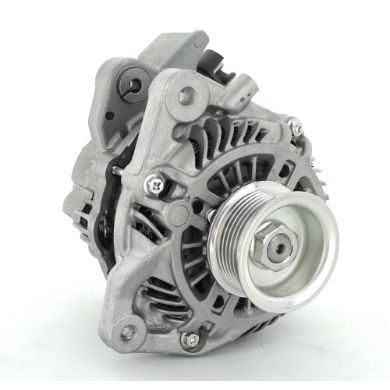

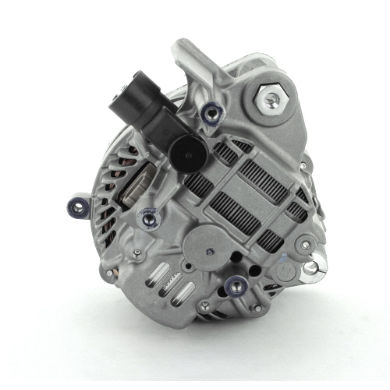

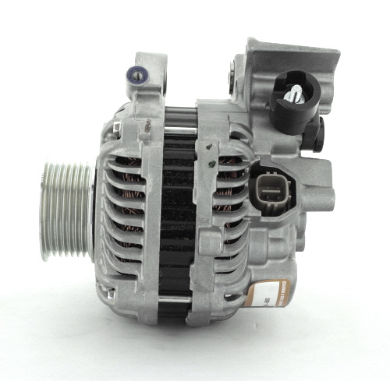

Part No. 126524
12v - 80A
|
Specifications |
Alternator |
|
Adj. Hole Diameter |
1x10 |
|
Adj. Pivot |
132 |
|
Inside Foot to Foot |
39 |
|
Pivot Hole Dia. |
1x10 – 1xM10 |
|
Pivot Lug Length |
N/A |
|
Voltage |
12v |
|
Amperage |
80A |
|
Mount Leg ID |
39 |
|
C-C Mounts |
132 |
|
Hole ID Top |
1x19 |
|
Hole ID Bottom |
1x10 – 1xM10 |
|
Pulley Type |
7PV |
|
Pulley Dia. |
67 |
|
Regulator Type |
Internal Reg. |
|

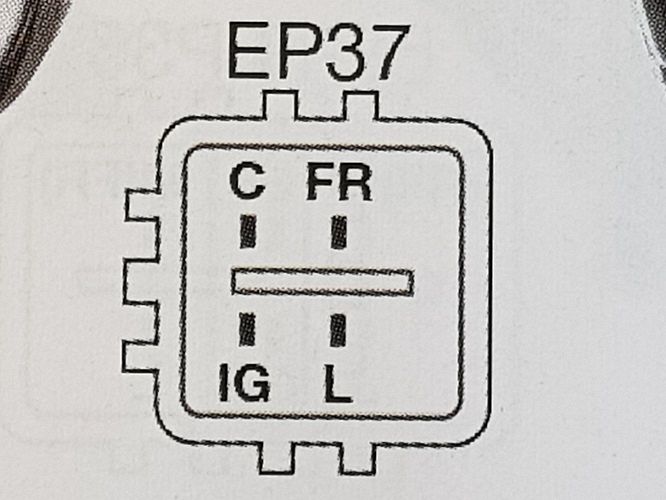

Connections Plug |
EP37 |
|
Terminals |
C, FR, IG, L |
Honda Civic 1.8, 2.0L (engine R18A) - 2001-2012
