Alternators

Part No. 126477

Price: $377.00

12v 140A

Specifications

Alternator

Adj. Hole Diameter

1x10

Adj. Pivot

139

Inside Foot to Foot

50

Pivot Hole Dia.

1x10

Pivot Lug Length

N/A

Voltage

12v

Amperage

140A

Mount Leg ID

50

C-C Mounts

139

Hole ID Top

1x10

Hole ID Bottom

1X10

Pulley Type

6PV

Pulley Dia.

61

Regulator Type

Internal Reg.

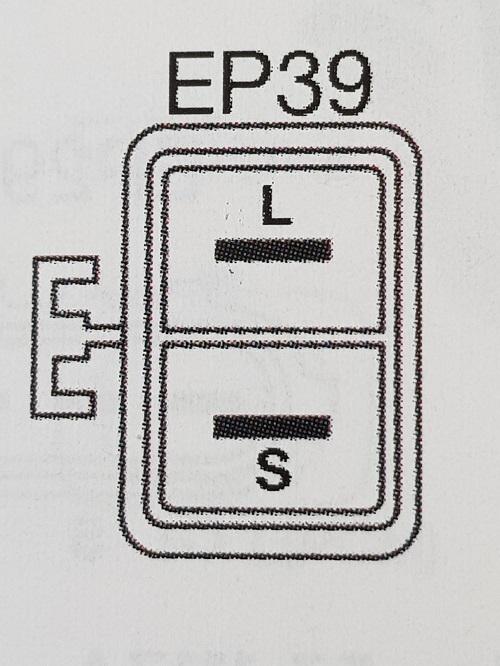

Connections Plug

EP39

Terminals

L, S

Holden Commodore, Crewman, - HSV Avalanche, Clubsport, Grange, GTO, GTS, Maloo, Senator, SV300, - 5.7L V8 (VT, VU, VX, VY, VZ) - Monaro 5.7L (V2, VZ (LS1)) - Statesman 5.7L (WH, WK, WL, (LS1)) - 1997-2006
