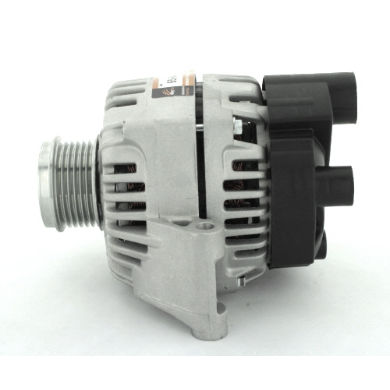

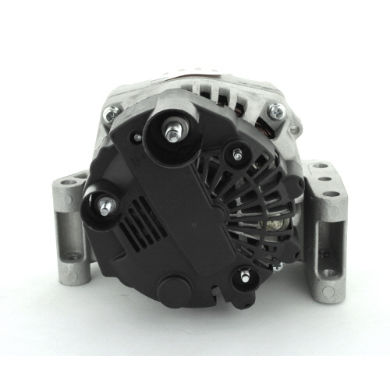

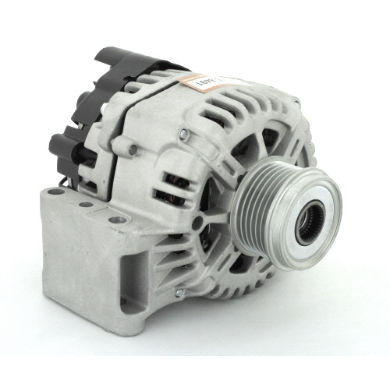

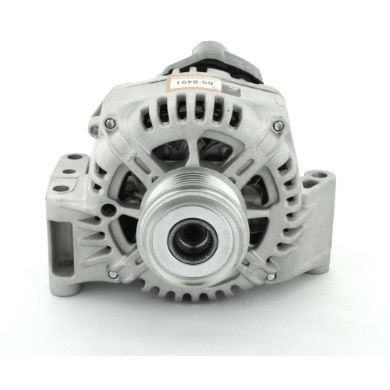

Part No. 126015
12v - 90A
|
Specifications |
Alternator |
|
Adj. Hole Diameter |
3x9.5 |
|
Adj. Pivot |
156 |
|
Inside Foot to Foot |
3x64 |
|
Pivot Hole Dia. |
3x9.5 |
|
Pivot Lug Length |
3x64 |
|
Voltage |
12v |
|
Amperage |
90A |
|
Mount Leg ID |
N/A |
|
C-C Mounts |
156 |
|
Hole ID Top |
1x9 |
|
Hole ID Bottom |
2x9 |
|
Pulley Type |
6PV |
|
Pulley Dia. |
54 |
|
Regulator Type |
Internal Reg. |
|
Connections Plug |
|
|
Terminals |
B+, L |
Fiat 500, Panda, Punto, 1.3L (engine 169A) - 2004> - Suzuki Ignis, Swift, 1.3, 1.5, 1.6L (engine M13A, M15A, M16A) - 2003>
