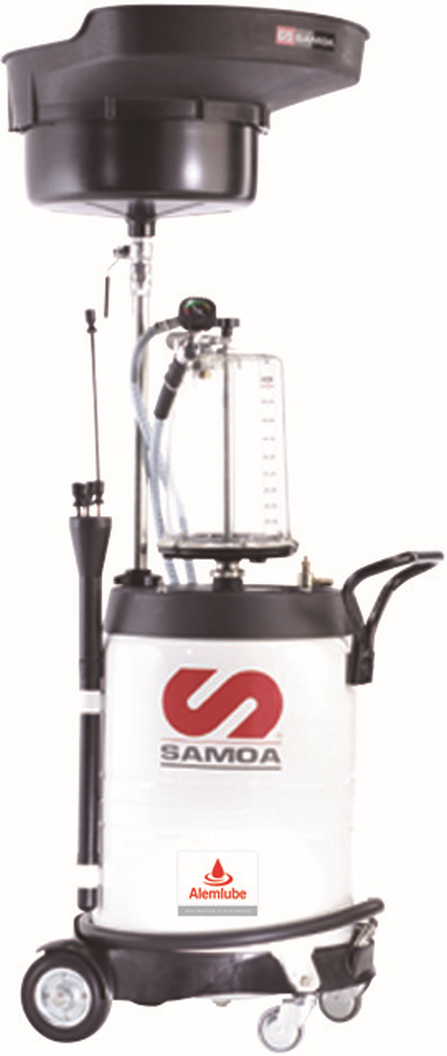

Drainer/evacuator-waste oil, 100l, 20l, 10l

Part No. 128607

Price: $3103.85

Drainer/Evacuator-Waste Oil,100L,20L,10L

Complete with a 20L bowl capacity & 10L clear bowl reservoir for viewing and measuring
Includes a 10 litre transparent chamber that can be used as a vacuum reservoir and allows an immediate inspection of the extracted waste oil
Waste oil suction is carried out by an air operated vacuum pump with no moving and no wear parts, using a suction lance or adapter inserted
into the motor oil dip-stick tube
Gravity collection is carried out using a 20 litre capacity, height adjustable and oversized, collection bowl with an anti-splash grid
Once the vacuum inside their tank is created, then these units can be used as autonomous units, disconnected from the air supply
The units are discharged through a discharge hose, pressurising the unit at 3.5 psi with a tyre inflator; includes a safety valve that prevents over pressure
Suction time with HOT oil (70/80c) & probe diameter 6mm, is 1.5-2 litres per min
Suction hose: 2m; Drain hose: 2m
Working pressure vacuum / discharge: 100-145psi / 70psi
