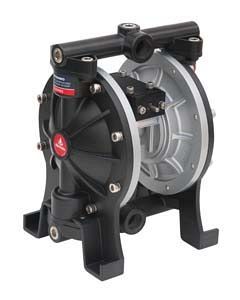

EL Series 3/4” Air Operated Diaphragm Pump
• Flow rates of up to 90L/min
• Maximum working pressure of 120psi (8bar)
• Maximum delivery per cycle of 225mL
• Maximum air consumption of 540L/min
• Maximum solid diameter of 2.4mm
• 3/4” BSP(f) fluid inlet/outlet
• 1/4” BSP(f) air inlet
• Body: Aluminium
• Diaphragm: UPE
• Ball Valve: Teflon
• Ball Cover: Aluminium
• Weight of just 8kg
• Dimensions of 228mm (W) x 202mm (D) x 306mm (H)
