Rotary latch - lh

Part No. 111630
Alt Part No's. 18610-01, 9/00423

Price: $66.40

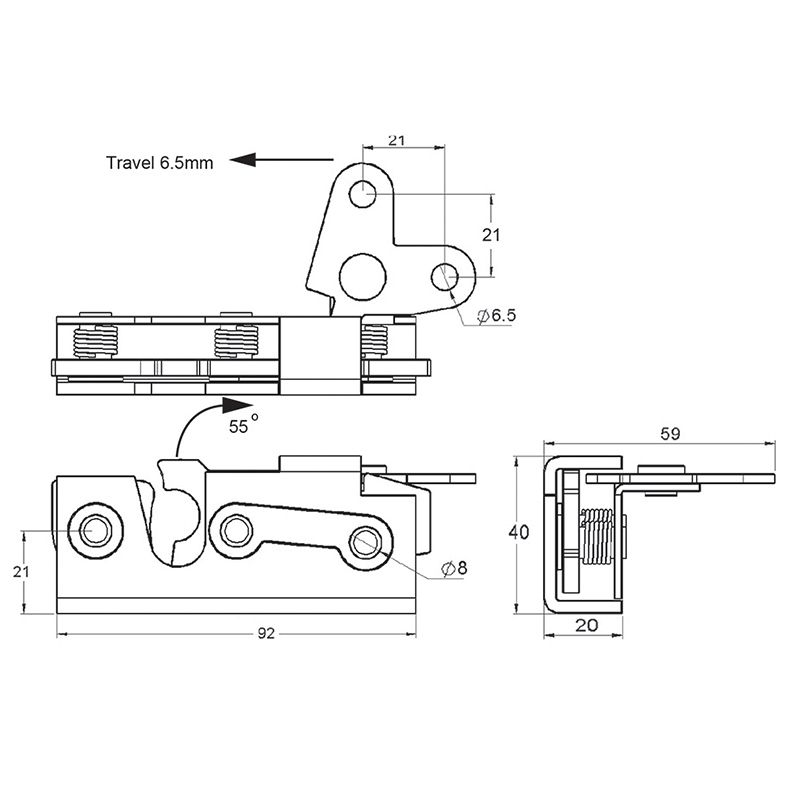

92x40x59mm

Material

Steel



Finish

ZP



Features

Slam-action against striker pin, both ‘ handle’ available.

Claw engages pin with 2-stage action, and is released by pull as shown on-lobe actuator arm. Clear zinc-plated through. Alternative actuator arms to special order.

Use with ‘ remote-action’ handles, turn buttons, wire and rod linkages, etc.



Anti-Burst Properties

When ring-tested, these latches can achieve values in excess of

8-9 KN* transverse load in fully latched condition.

However, vehicle builders are responsible for evaluating performance in their own particular application and for ensuring

that appropriate legislation is satisfied.

*SAE & ECE11 Specification
