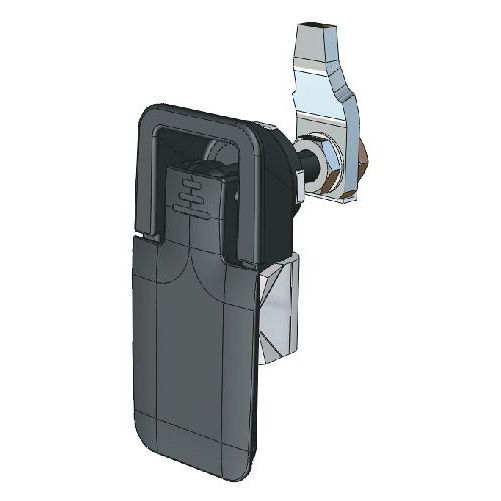

Part No. 111624
Alt Part No's. 62NBP

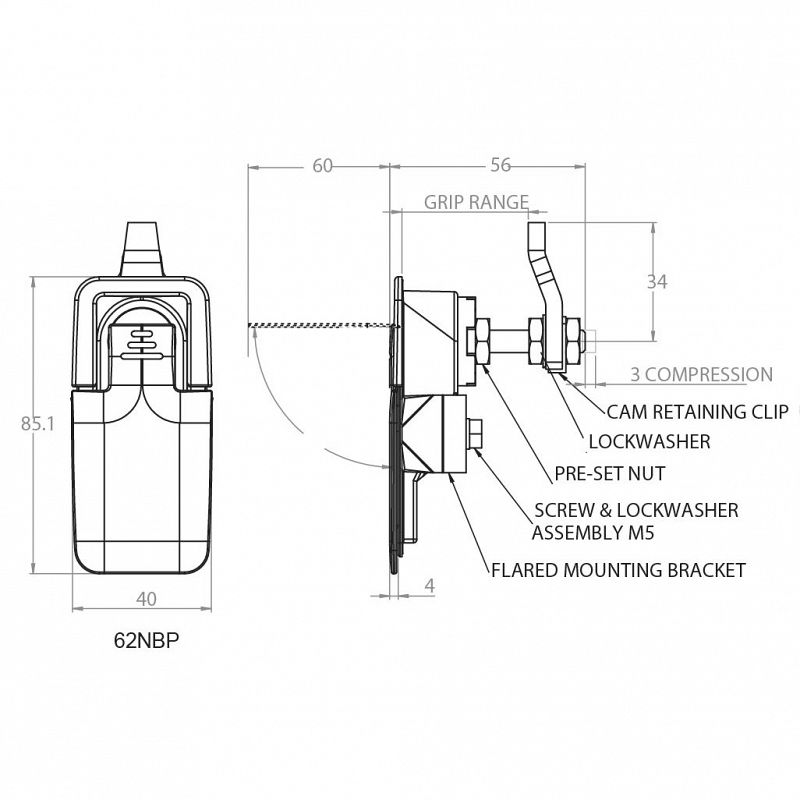

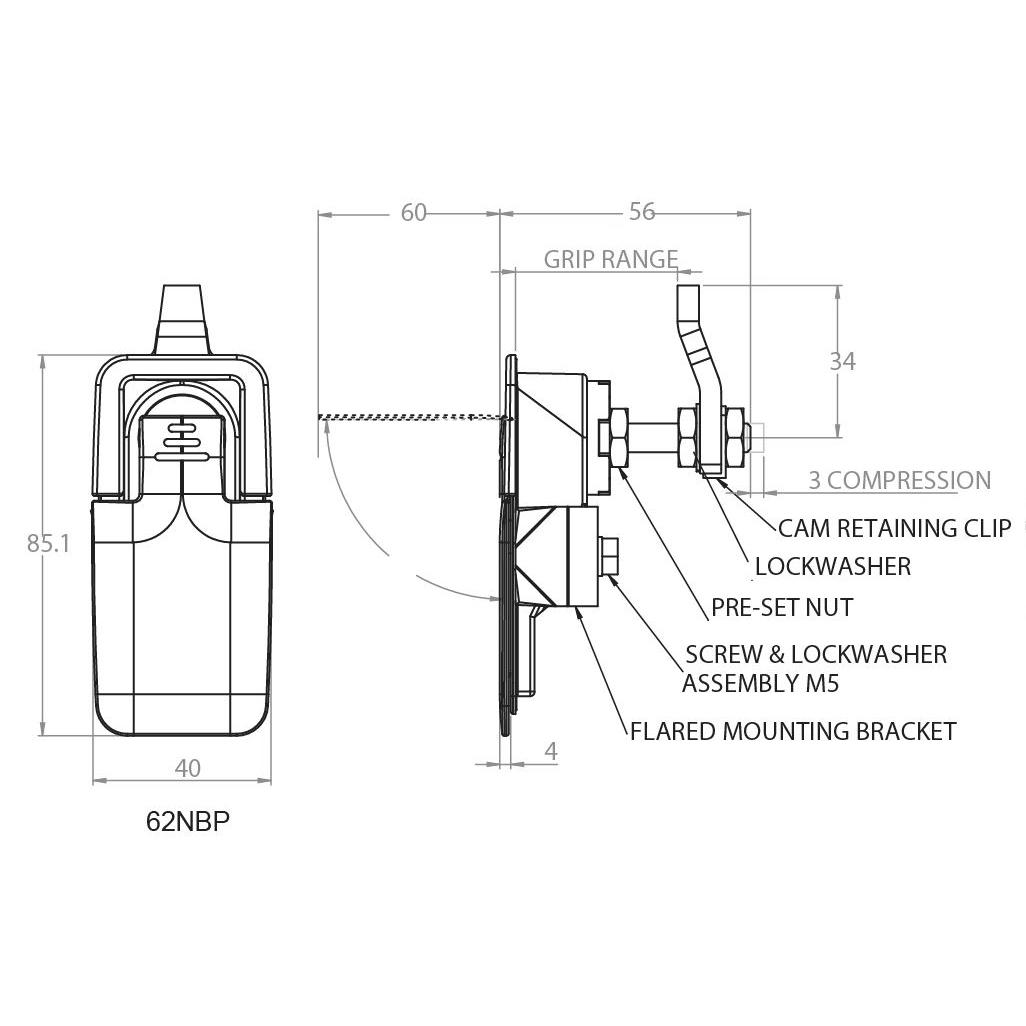

85.1x40x56mm
Material
Zinc Alloy
Finish
Black Powder Coated
Features
Environmental sealing is achieved by using a cup gasket and sealing the mounting screw threads.
Screw and lock washer assembly M5 x 16.
For door thickness greater than 6 calculate screw length using the following formula: Door thickness 10
Two flat keys provided.

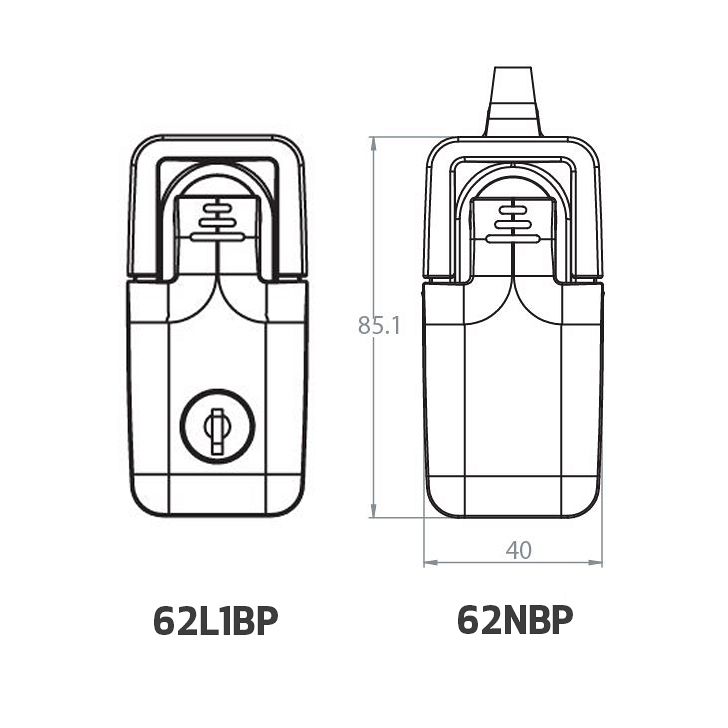

62NBP Non-locking
62L1BP7 Locking
