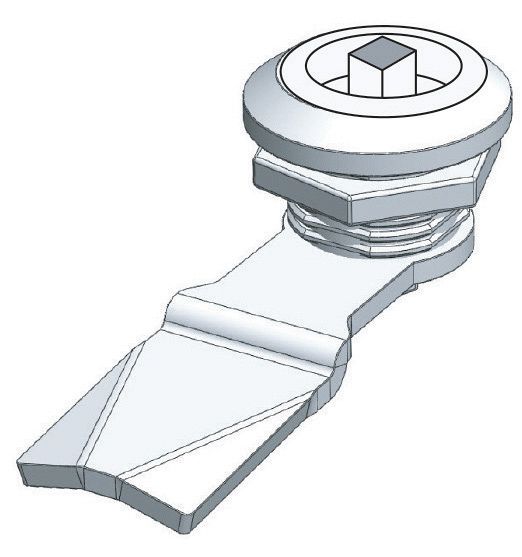

Quarter turn lock - slotted

Slotted Driver

Material

Zinc Die-Cast

Finish

Chrome Plated

Features

Vibrant Resistant.

Assembled to IP 65/Nema 4

Complete with earth nut

Zinc die-cast housing CP

28mm diameter x 18mm x 61mm.

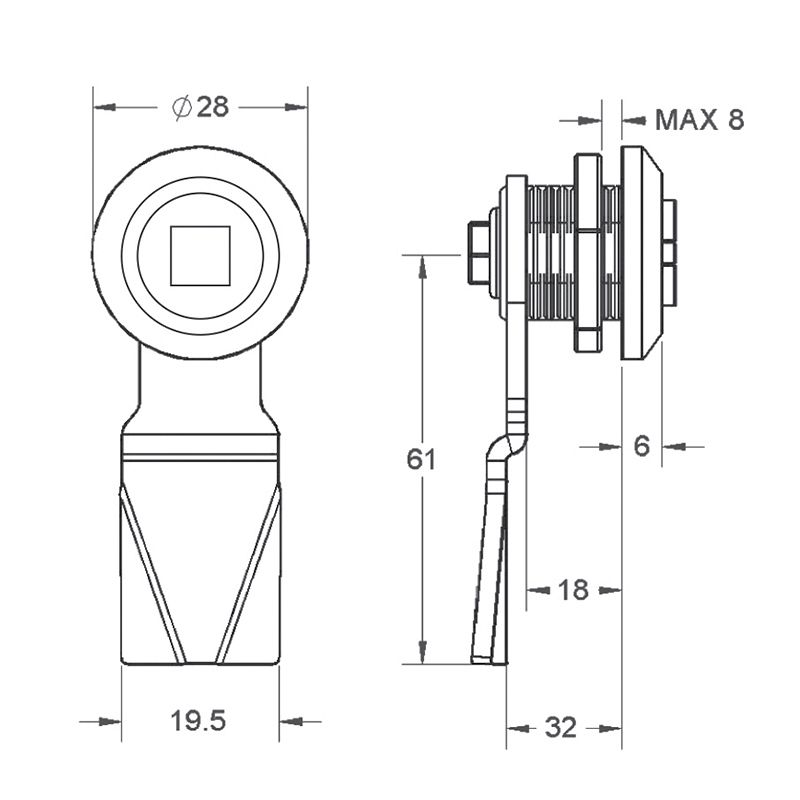

Please refer to the drawing.

Drive Inserts

QT18-DS: Slotted

Fastener for any application requiring a quarter turn action to secure doors etc. The cam ‘snaps in’ at the open and closed positions, preventing unintentional opening of the fastener due to vibrations.

Please ask us for details if your application is not shown.
