Part No. 113976
Alt Part No's. 7004.90.080, HGWOBA80, WOHAL-080GN
80mm
Material
Aluminium
Finish
Satin
Features
Stainless Steel Washer
Stainless Steel Pin
Grease Nipple

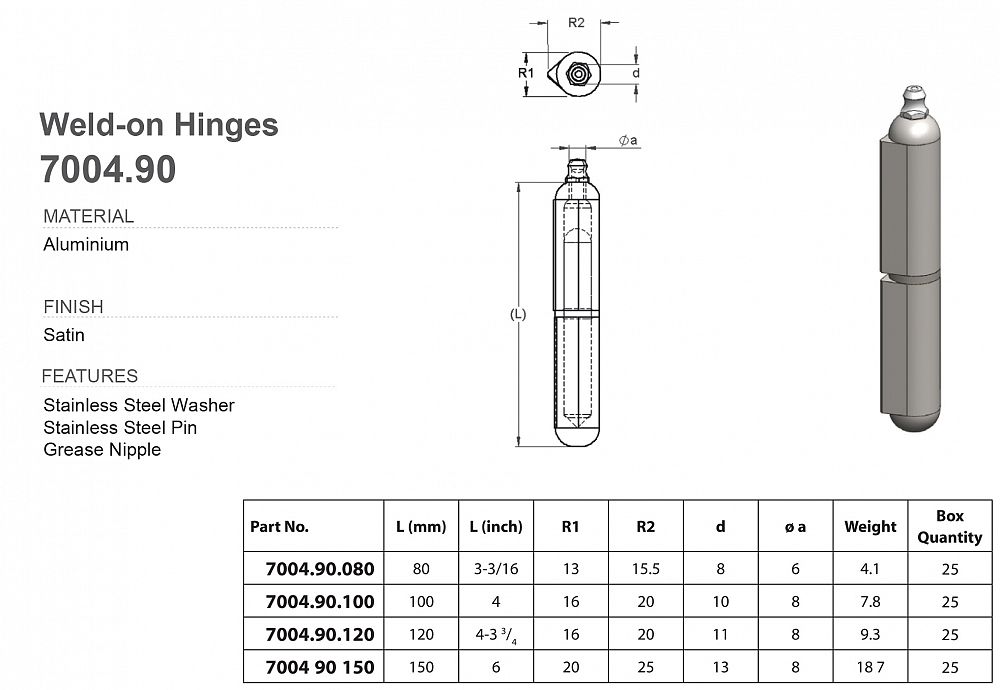

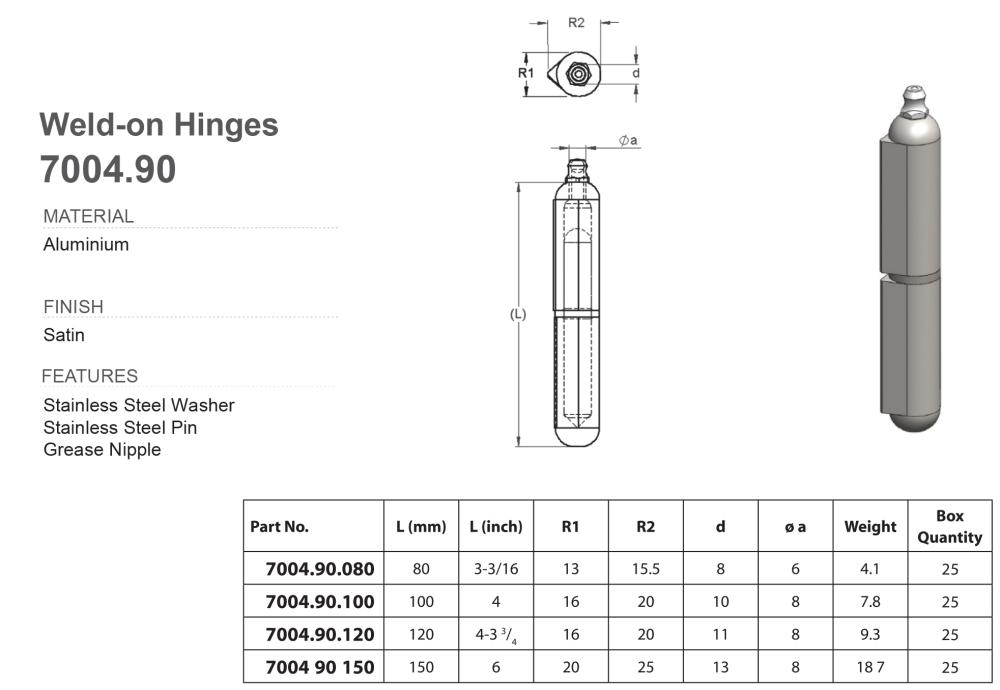

Length = 80mm
R1 = 13mm
R2 = 15.5mm
d = 8mm
Oa = 6mm
Weight = 4.1g

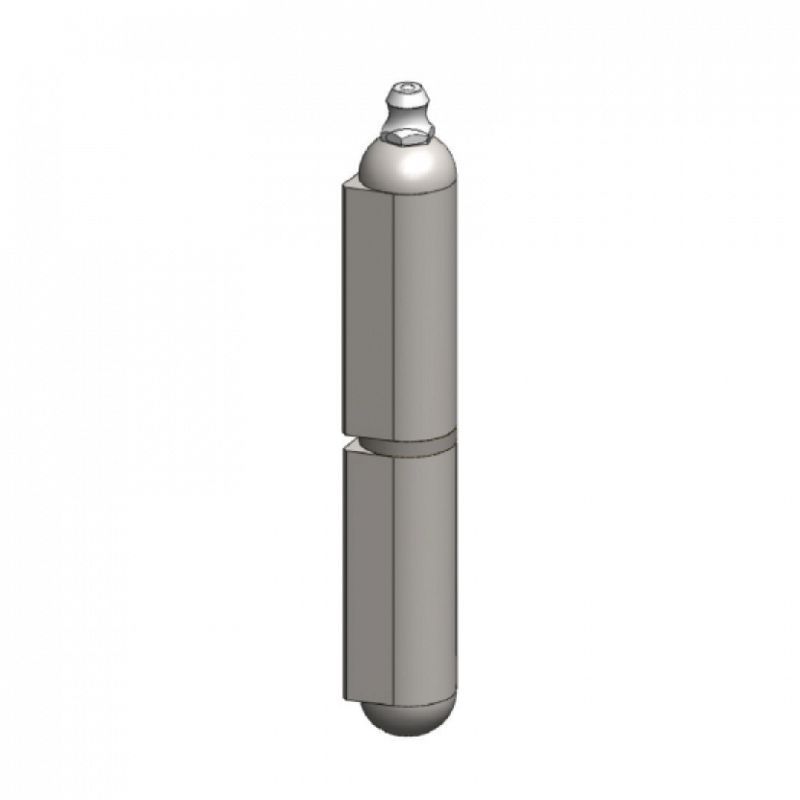

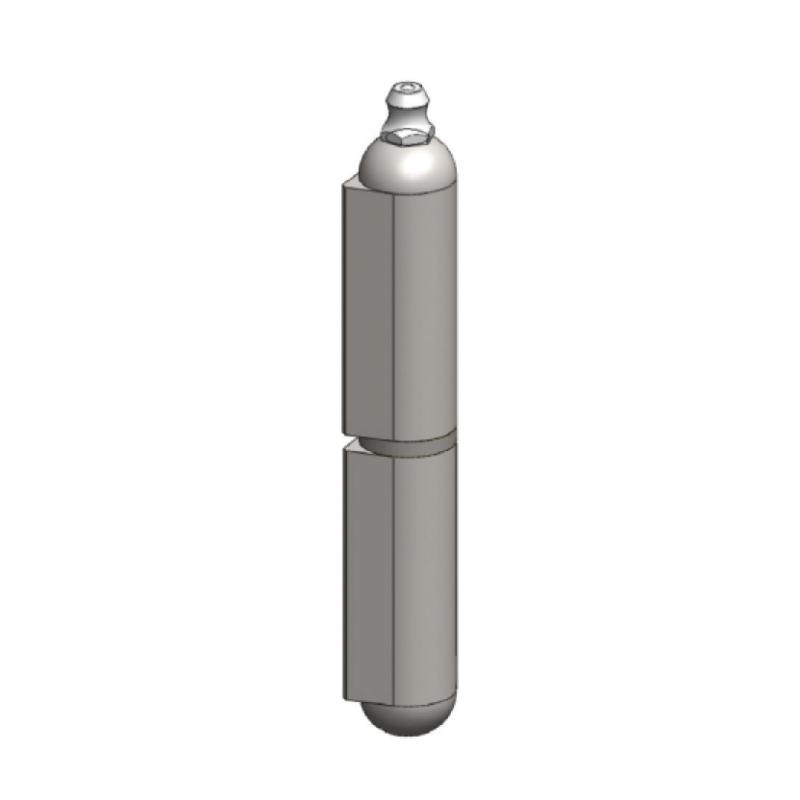

80mm weld on bullet hinge. Alloy hinge with stainless steel pin and nickel plated brass grease nipple. Ideal for alloy toolboxes or for lift off doors.
