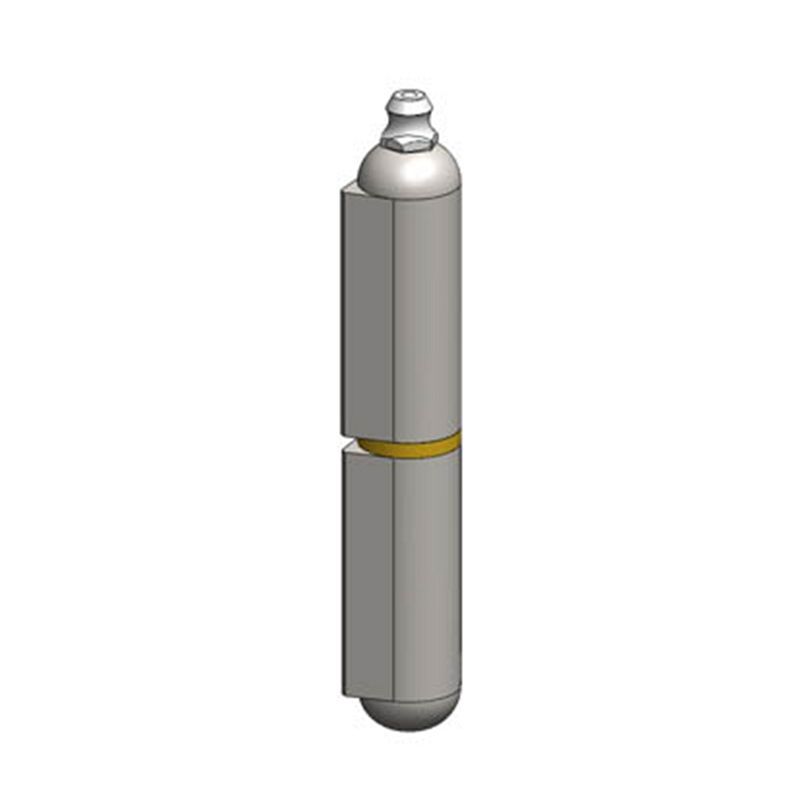

120mm weld-on hinge steel pin, brass washer - grease nipple

Part No. 113971
Alt Part No's. 7004.00.120, HGWOBS120, WOHMS-120GN

120mm

Material

Steel

Finish

Satin

Features

Brass Washer

Steel Pin

Grease Nipple

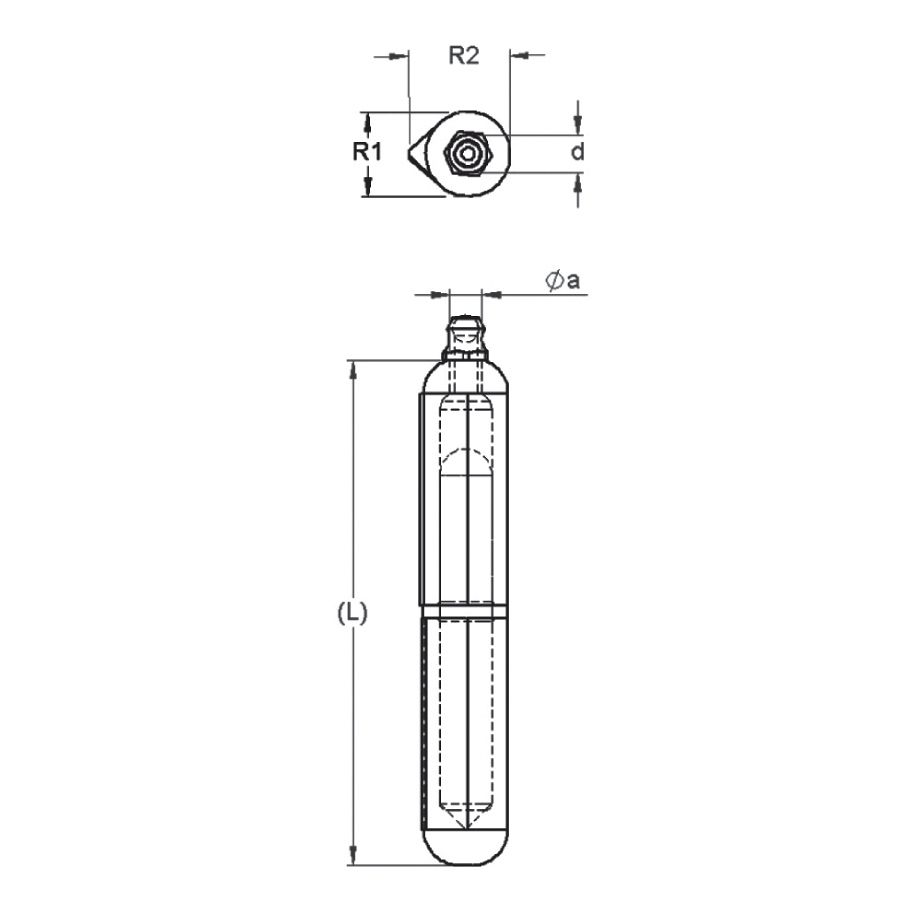

Length = 120mm

R1 = 16mm

R2 = 20mm

d = 11mm

Oa = 8mm

Weight = 19.3g

120mm weld on bullet hinge. Steel hinge with brass pin and brass grease nipple. Ideal for toolboxes or for lift off doors.
