100mm weld-on hinge steel pin, brass washer - grease nipple

Part No. 113970
Alt Part No's. 7004.00.100, HGWOBS100, WOHMS-100GN

100mm

Material

Steel

Finish

Satin

Features

Brass Washer

Steel Pin

Grease Nipple

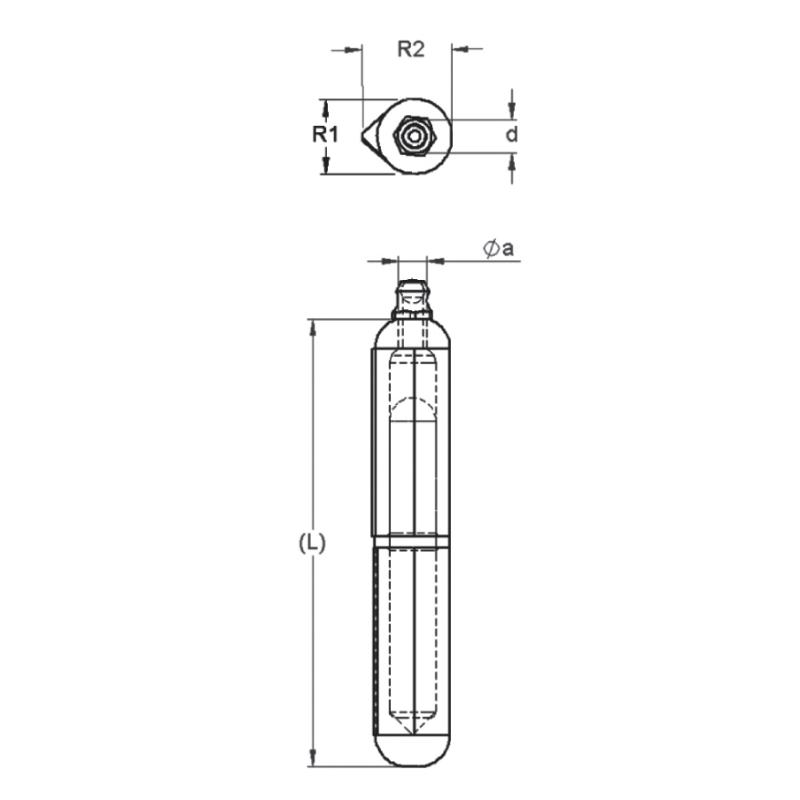

Length = 100mm

R1 = 16mm

R2 = 20mm

d = 10mm

Oa = 8mm

Weight = 16.4g

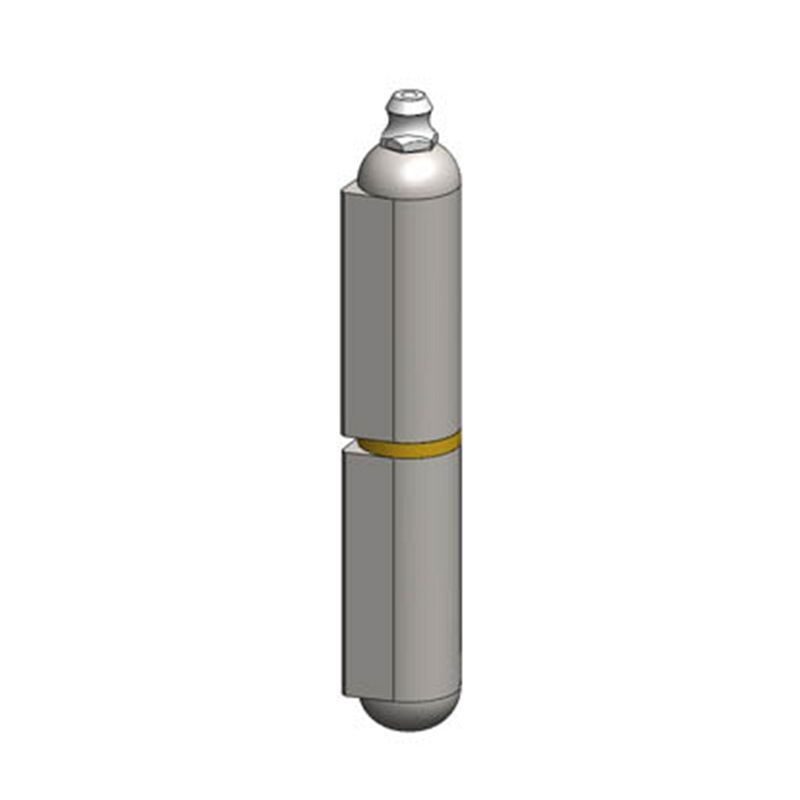

100mm weld on bullet hinge. Steel hinge with brass pin and brass grease nipple. Ideal for toolboxes or for lift off doors.
