80mm weld-on hinge steel pin, brass washer - grease nipple

Part No. 113969
Alt Part No's. 7004.00.080, HGWOBS80, WOHMS-80GN

80mm

Material

Steel

Finish

Satin

Features

Brass Washer

Steel Pin

Grease Nipple

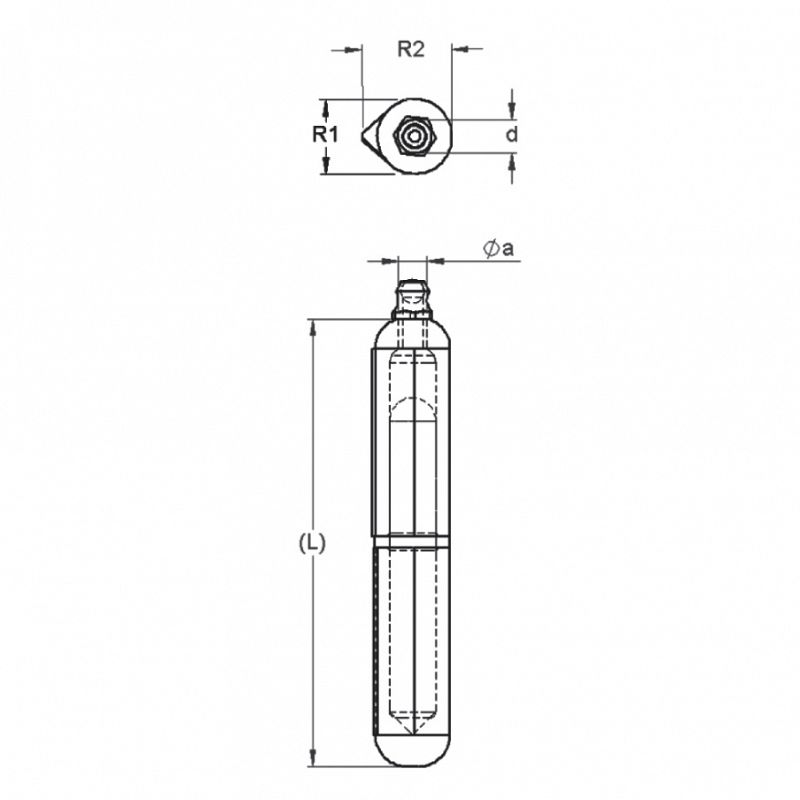

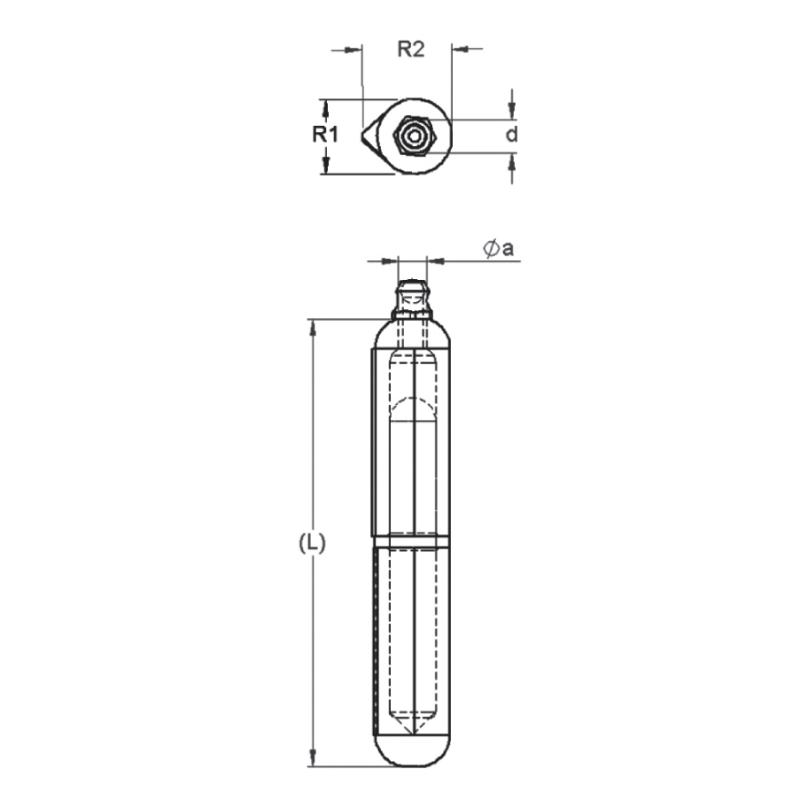

Length = 80mm

R1 = 13mm

R2 = 15.5mm

d = 8mm

Oa = 6mm

Weight = 8.5g

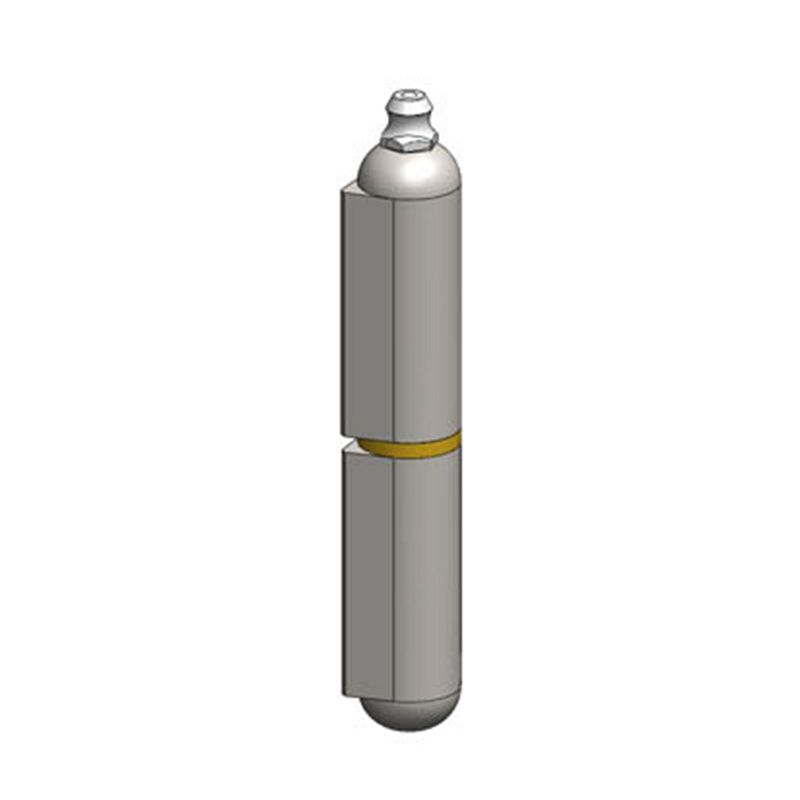

80mm weld on bullet hinge. Steel hinge with brass pin and brass grease nipple. Ideal for toolboxes or for lift off doors.
