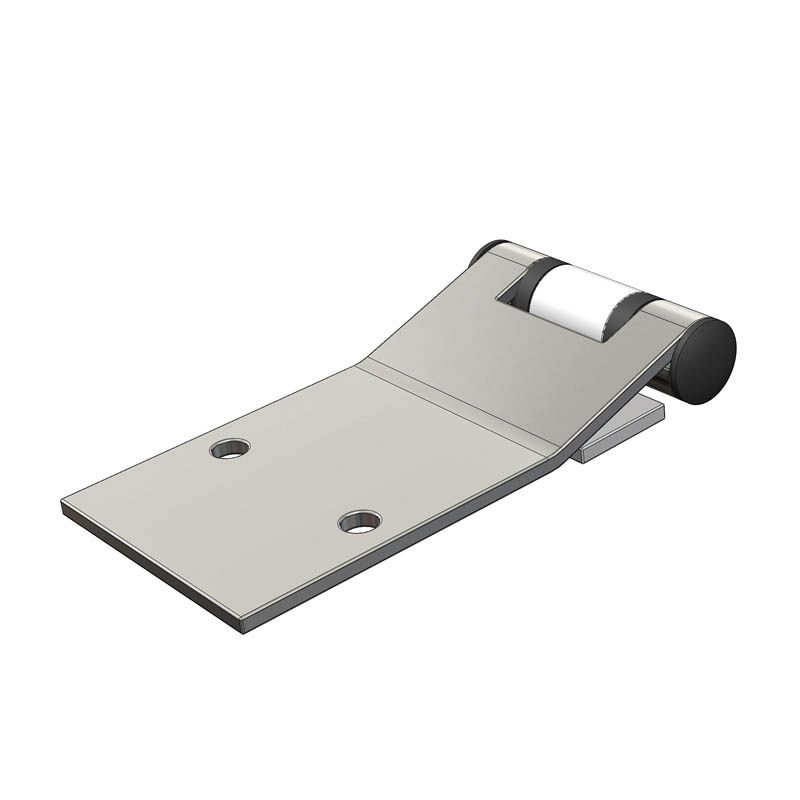

Canopy hinge

Part No. 114057
Alt Part No's. 0948/002

Price: $41.77

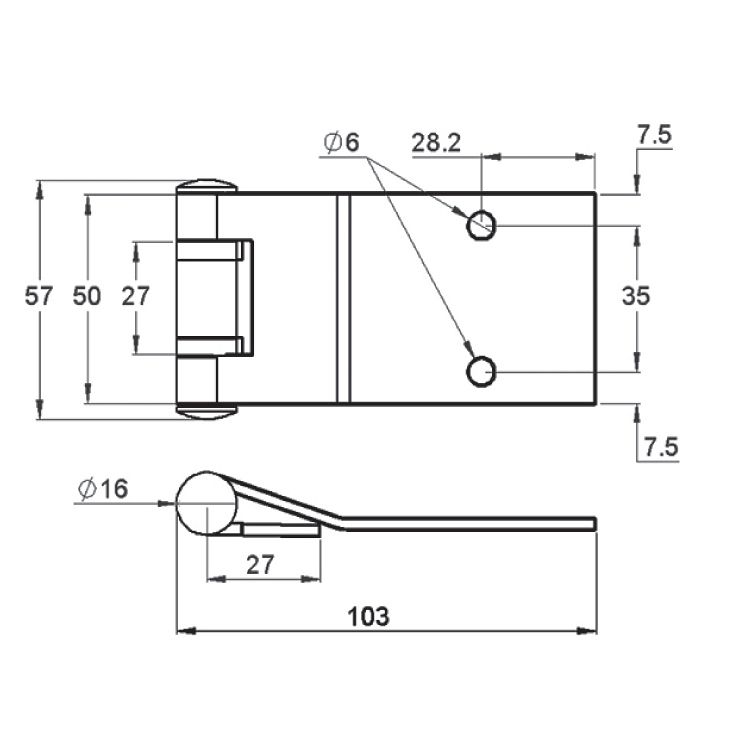

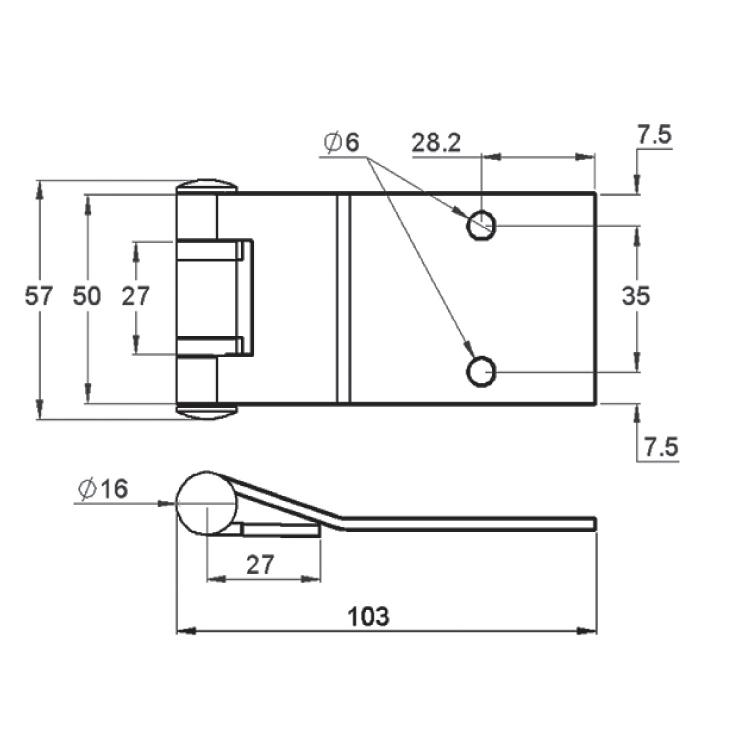

103x57mm

Material

Steel/Stainless Steel Pin

Finish

ZP

Features

A canopy rear door hinge – suitable for door hinged horizontally and from 35mm to 87.5mm deep.

A 6mm pin fully enclosed in black nylon bushes – thus easy action and maintenance free.

Made from 3mm thick mild steel and with 2 x 6mm holes in short flap both countersunk. 2 x 6mm holes in long flap.
