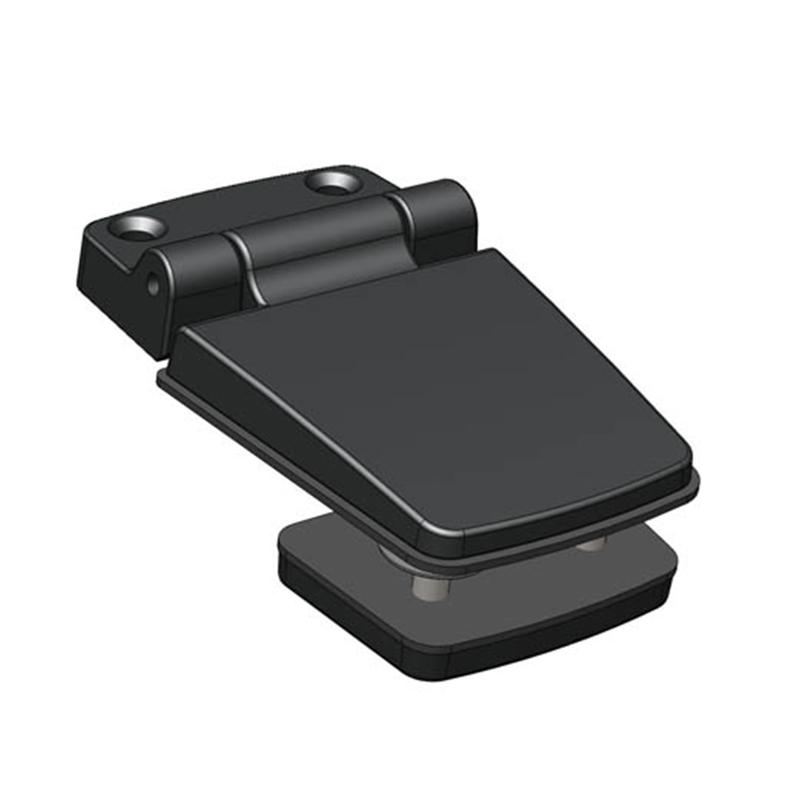

Die-cast hinge

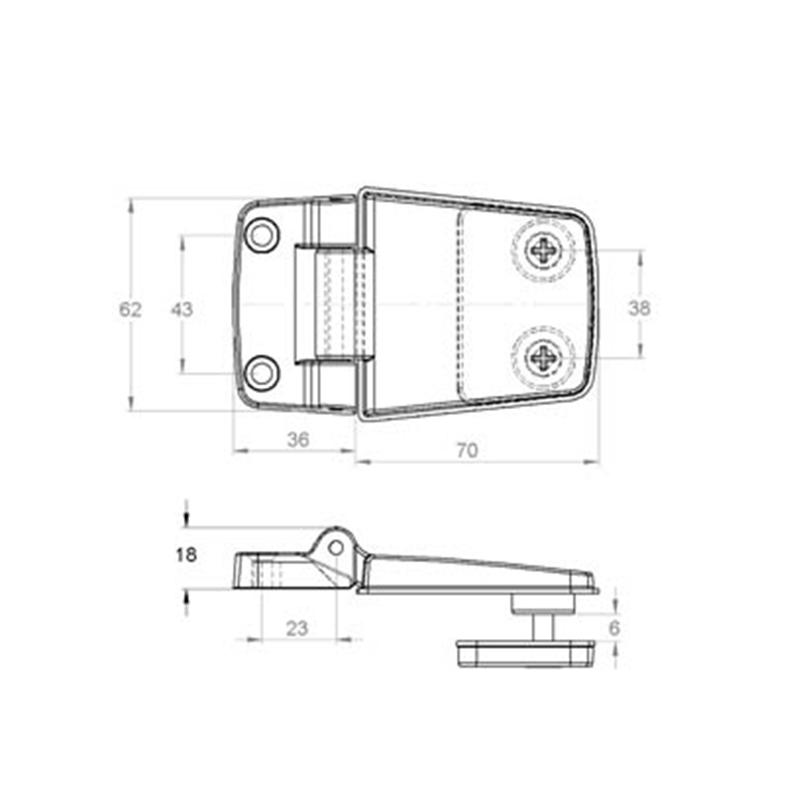

106x65mm

Material

Zinc Die-Cast

Finish

Black powder coat

Features

This low-profile design is smart and suitable for cabinets, boot/ bonnet and window applications.

It is fully plant-on, with open fixing on the bonnet but secured on the hinge leaf by two concealed screws into tapped bosses.

This design, together with securing plate and rubber gaskets, allows glass to be held without fracture. Angle of opening is 180°.

Flat hinge, screws and gasket supplied.
