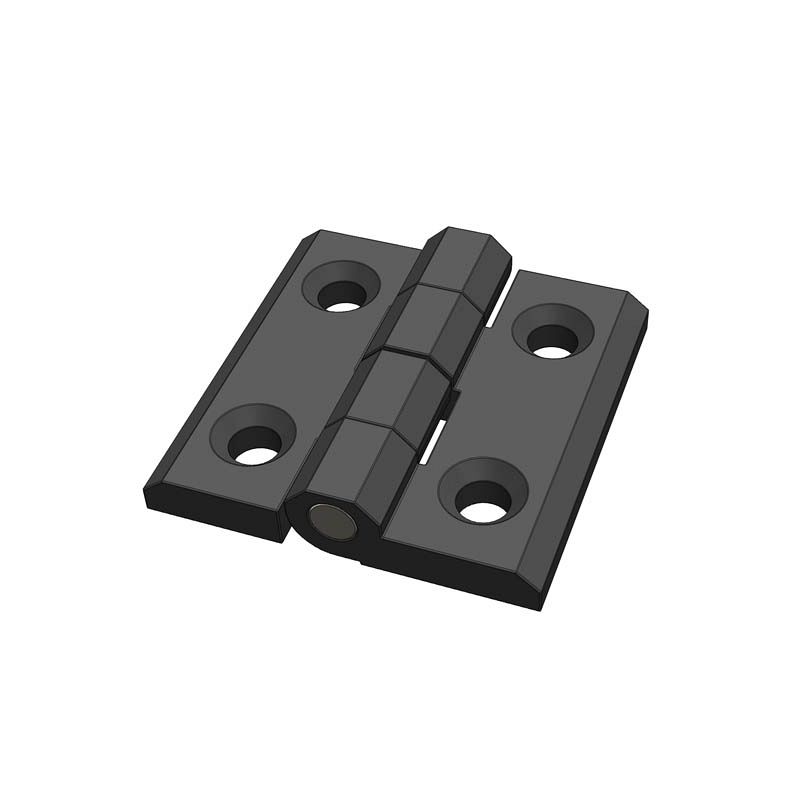

Polyamide hinge with counter sunk holes

Name: POLYAMIDE HINGE WITH COUNTER SUNK HOLES
Price: 14.80 NZD

Part No. 114034
Alt Part No's. 7214120, BH04040X4PB

40x40mmx 4mm Thick nil stock

Material

Polyamide

Finish

Black

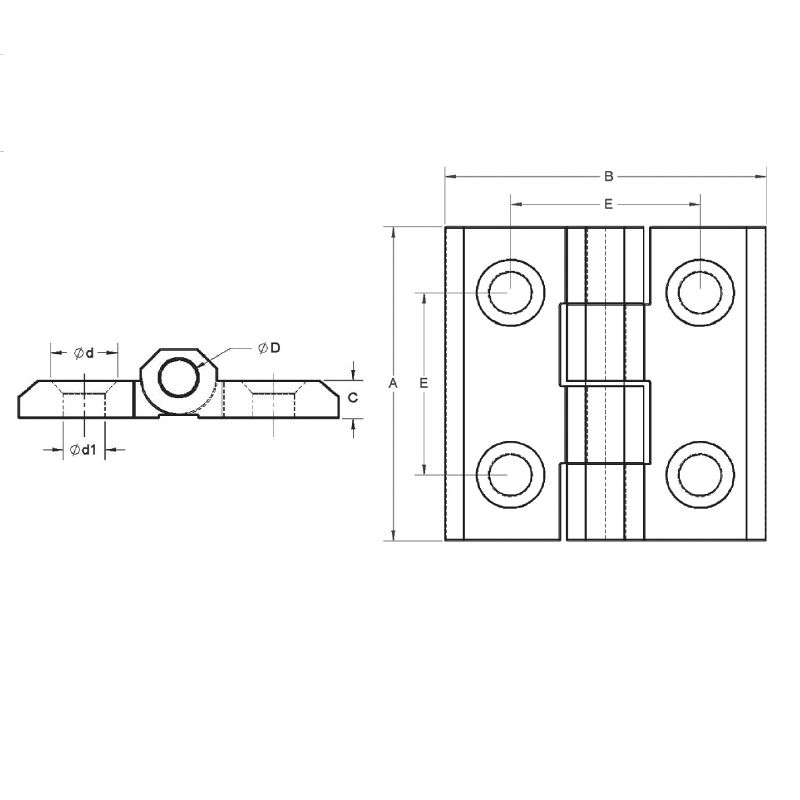

Part Number	A	B	C	D	E	d	d1	Material	Weight
BH04040X4PB	40	40	5	4	25	10, 2	5, 3	Polyamide Black	44g
BH05050X6PB	50	50	6	6	30	12, 4	6, 4	Polyamide Black	56g
