Moulded grab handle - yellow

Part No. 111576
Alt Part No's. 9/01725/03, GHBO-PY1

Price: $74.74

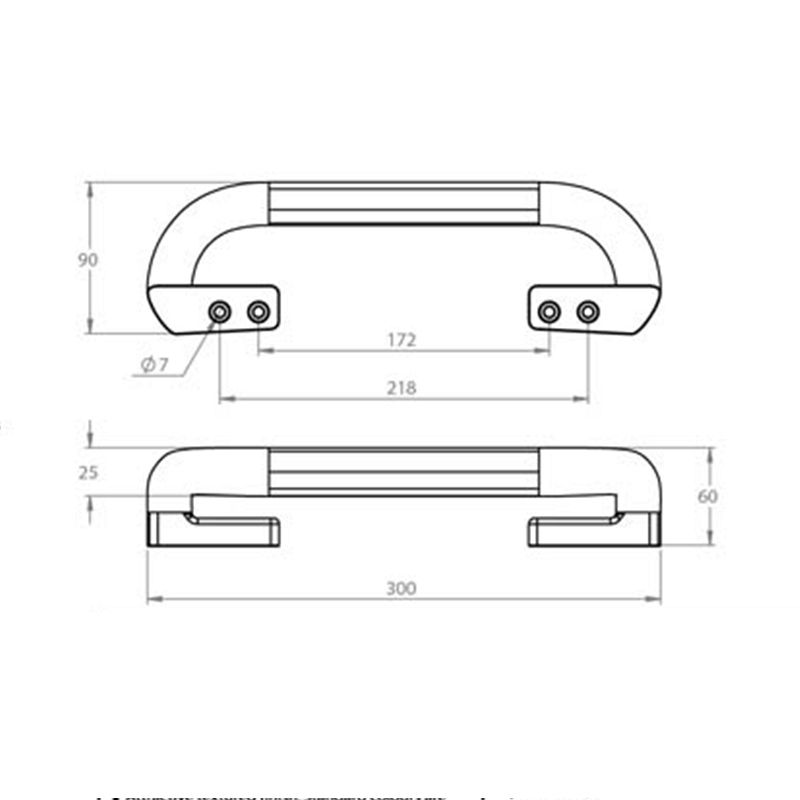

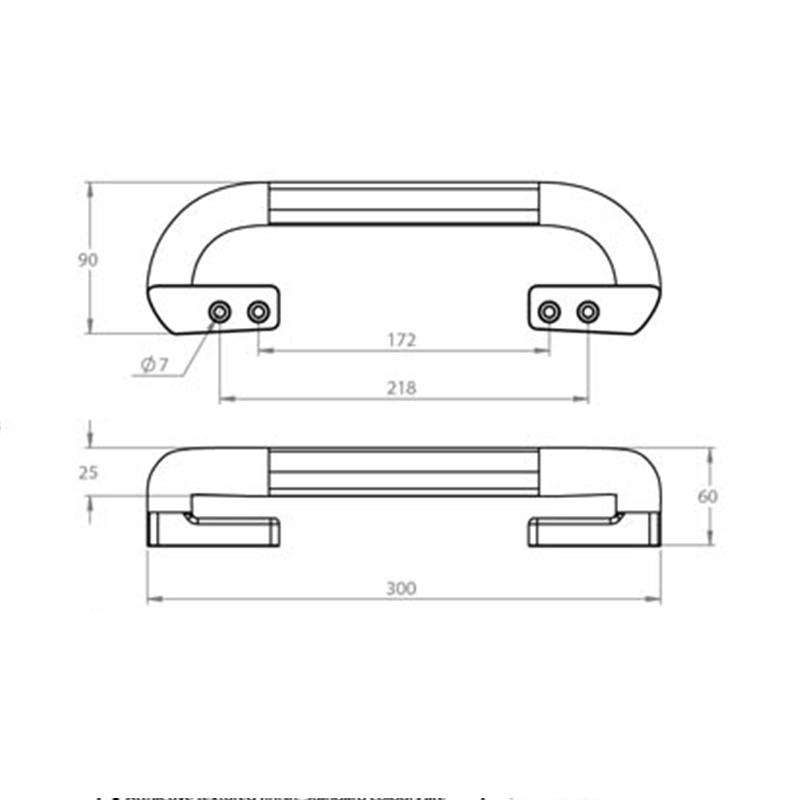

300x90x60mm

Material

Steel



Finish

9/01225 – Black Polyurethane coating

9/01725/03 – Yellow Polyurethane coating



Features

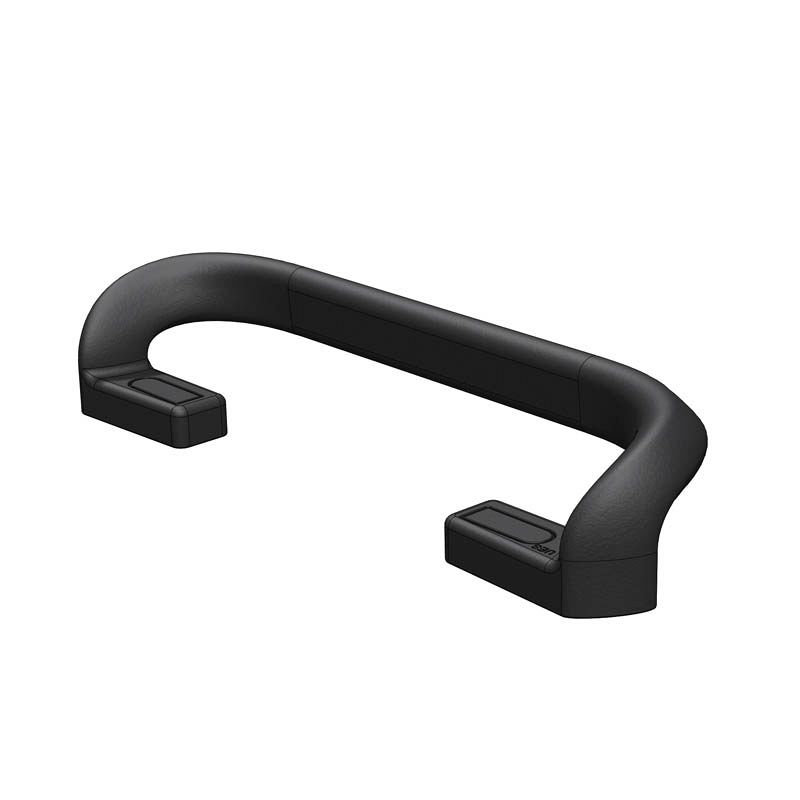

Moulded in expanded polyurethane foam, this handle has a soft, resilient surface with no sharp edges, while the steel core provides strength and rigidity.



This modern design replaces traditional steel stanchion rails and ensures safety and comfort when used as a grab, or entry-assist rail.



Load Test Data

Parallel to fixing: Load 3.70 Kilo-Newtons (377kg) before distortion.

Vertical to fixing: Load 3.56 Kilo-Newtons (363kg) before distortion.

Safe working load: 250kg (550lbs) max.



  • Soft, padded surface.
  • No sharp edges, for maximum safety.
  • Triangular section for good grip.
  • Mounting holes concealed by snap-in plugs.
  • Attractive, textured finish. Standard colours are black, red and yellow. Other colours can be moulded subject to batch-quantity requirements.
  • Fixing by bolting through four holes in steel core. Handle cannot be ‘flexed’.
  • Moulded in expanded polyurethane foam around solid, 10mm steel rod. Meets EC95/28/CE regulation for combustibility (less than 100mm per minute).
