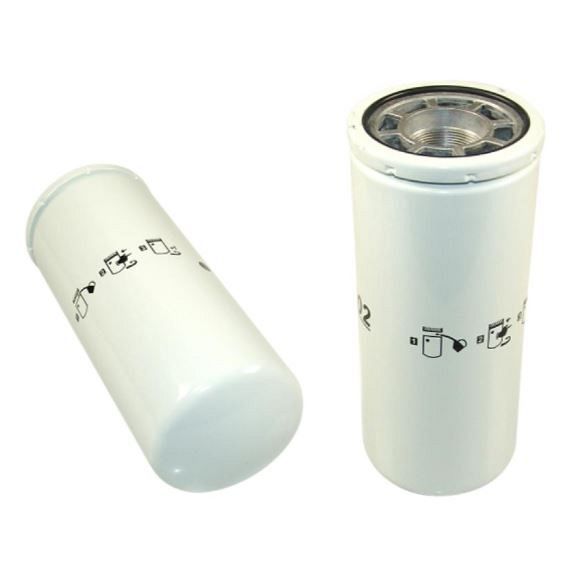

Hydraulic filter

Part No. 135329 | SH 66107

242x101mm - (1 1/2-16 UNF)

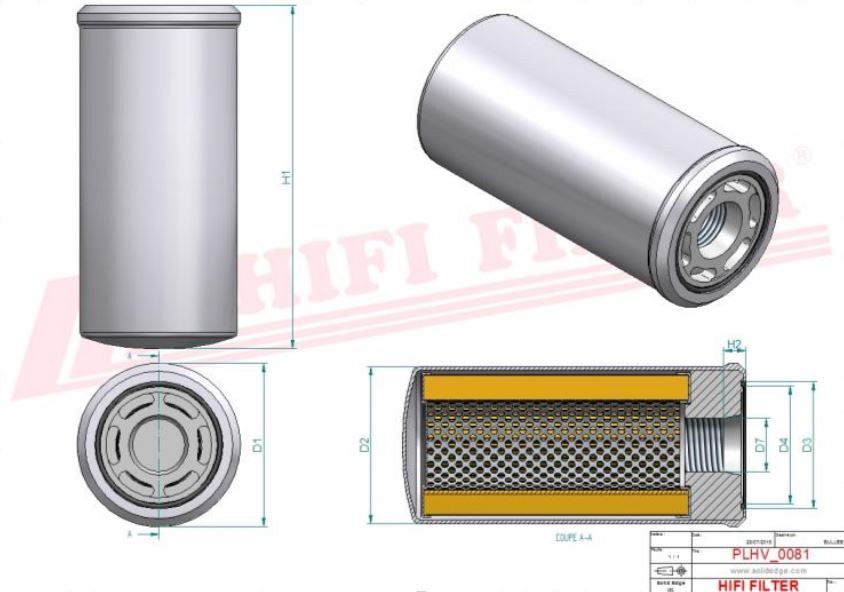

Filter Description	Hydraulic Element
Height H1	242
Height H2	15
Outside D1	101
Outside D2	98
Gasket OD D3	84.5
Thread Size D7	1 1/2"-16 UNF

HITACHI - LX100, LX120, LX150, LX230.

JOHN DEERE - 360, 444, 460, 540, 544, 548, 560, 624, 640, 643, 648, 670, 672, 690E, 740, 744, 748, 824, 840, 843.

TIMBERJACK - 360, 460.
