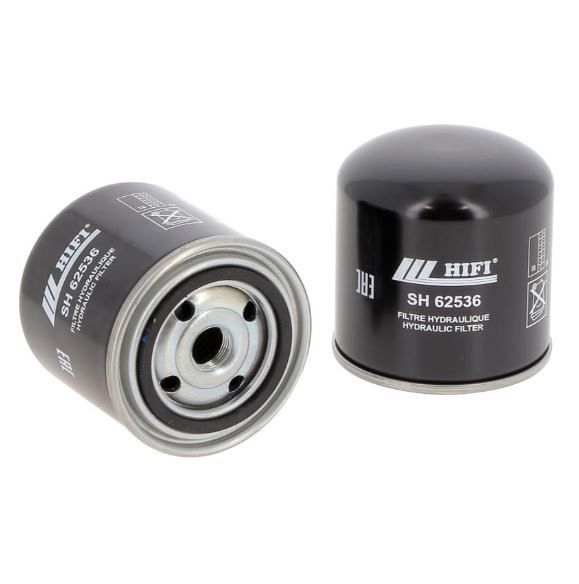

Hydraulic filter

Part No. 135310 | SH 62536

100x96mm - (3/4-16 UNF)

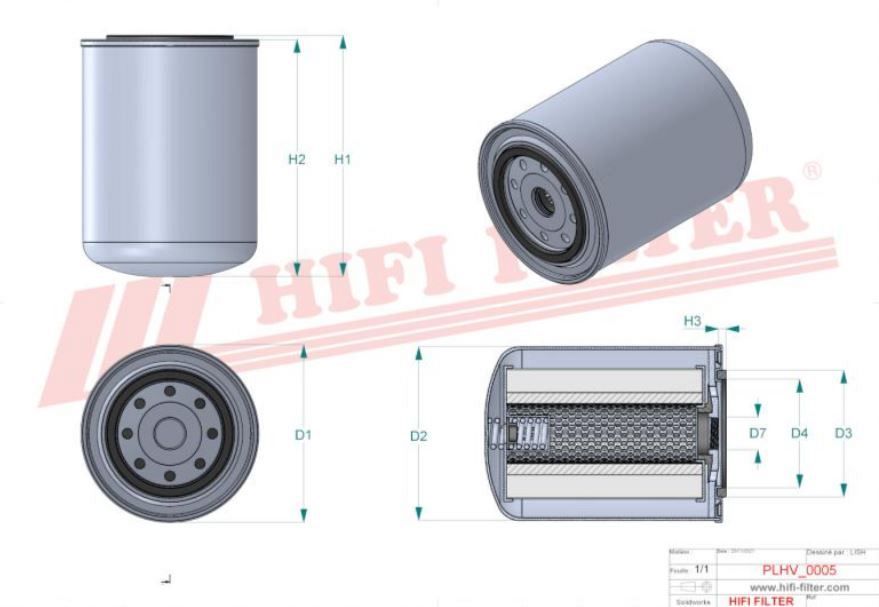

Filter Description	Hydraulic Spin-on
Height H1	100
Height H2	97.5
Outside D1	96
Outside D2	93.5
Gasket OD D3	71.5
Thread Size D7	3/4-16 UNF
By-pass Valve	Yes

BOGE - S15, S8, SD15, SD20, SDF15, SF15, Soildscrew 11, 15, 4, 5, 7.

DALGAKIRAN - DVK10, DVK7, TIDY10, TIDY7.

HERTZ COMPRESSOREN - HGS5.5, HGS7.5, HSC10, HSC15, HSC20, HSC5, HSC7.

MAC 3 - MSB7.
