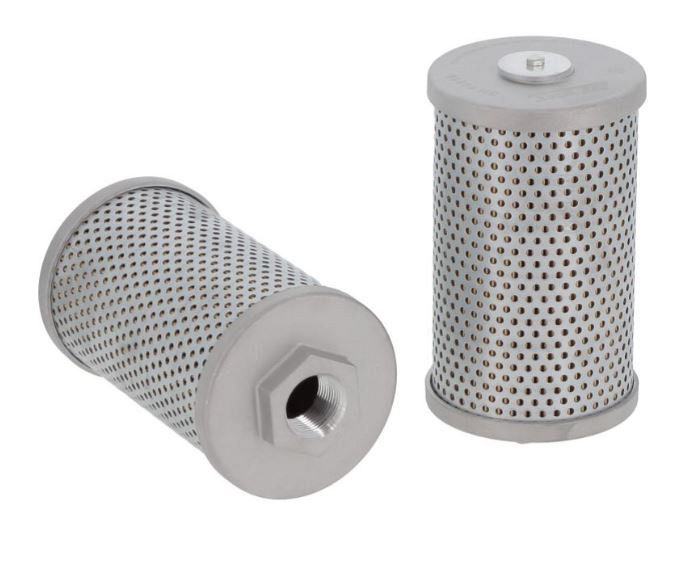

Hydraulic filter

Part No. 134311 | SH 60916

168x90mm - (3/4-NPTF)

Filter Description	Hydraulic Strainer

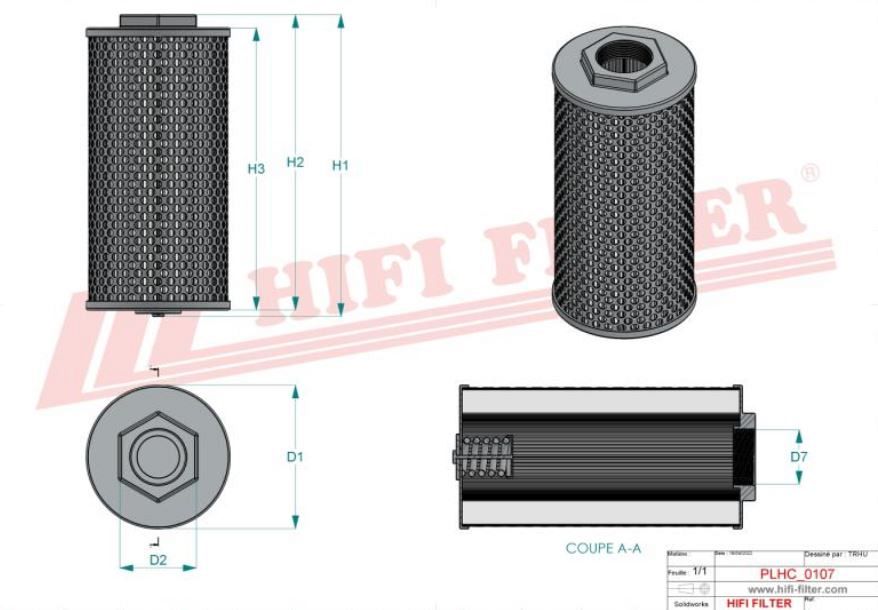

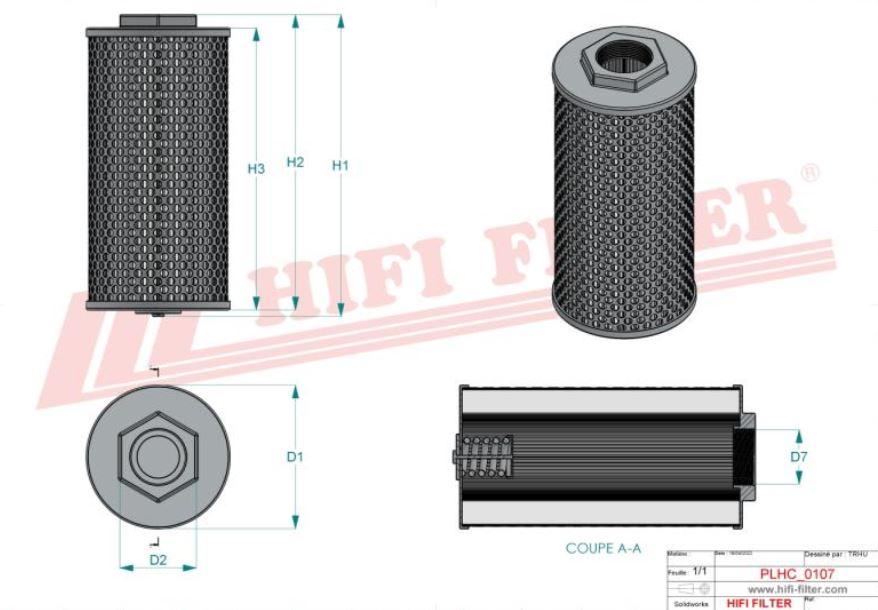

Height H1	168
Height H2	161
Height H3	150
Outside D1	90
Nut Size	39
Thread Size D7	3/4-NPTF
By-pass Valve	1.0

CASE - CK15, CK25, CK28.

CATERPILLAR - DP25K.

DOOSAN DAEWOO - C25G.

HYSTER - 200HMS, H1.50, H3.0

HYUNDAI - 20DA.

KOMATSU - FD15, FD20, FD25, FD30, FG15, FG25, FG30.

KUBOTA - K008, KH007, KH08, KH21, KX012, KX021, KX024, KX36, KX41, KX61, KX71, U10, U15, U20.

MANITOU - ME316, ME318, ME320, ME420, ME425, ME430, ME440, ME445, ME450.

MITSUBISHI - FD23, FD23, FD28, FD30, FD70, FG15, FG35A, WS200, WS300.

NISSAN - 1DX18, 1DX25, D02A20, D02A25, D02A30, DX15, DX18, DX20, DX25, DX30, FD02A25, FD02A30, PD01A15, U1D2A25, UD02A25.

YALE - FD10-20, FG10-20, FG20-30, FG30, GC030, GC040, GC050, GC060, GD030, GDC040, GDC050, GDC060, GDP030, GDP040, GDP050, GDP060, GDP15, GDP20, GDP30, GDP40, GDP60-25, GLC030, GLC040, GLC050, GLC060, GLP015, GLP030, GLP040, GLP050, GLP060, GLP15, GLP16, GLP20, GLP25, GLP30, GP030, GP040, GP050, GP060.
