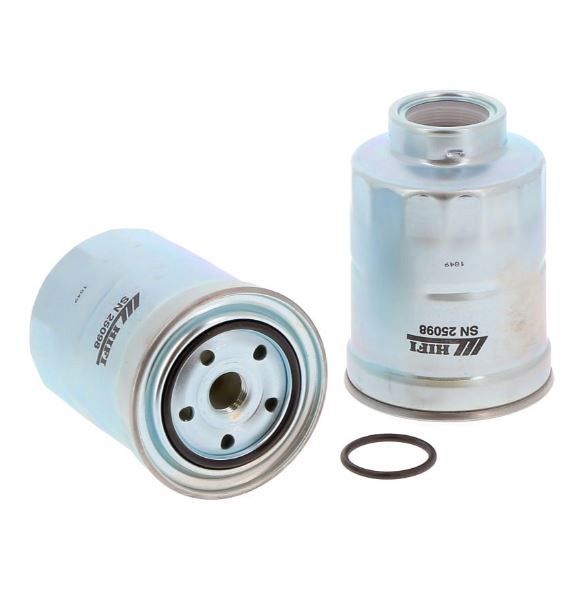

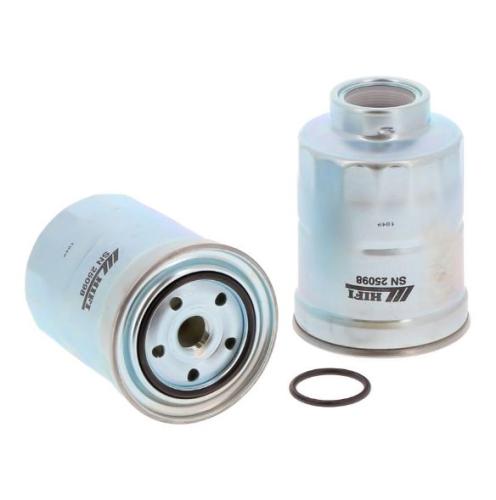

Fuel filter

Part No. 135378 | SN 25098

130x94mm - (3/4-16 UNF)

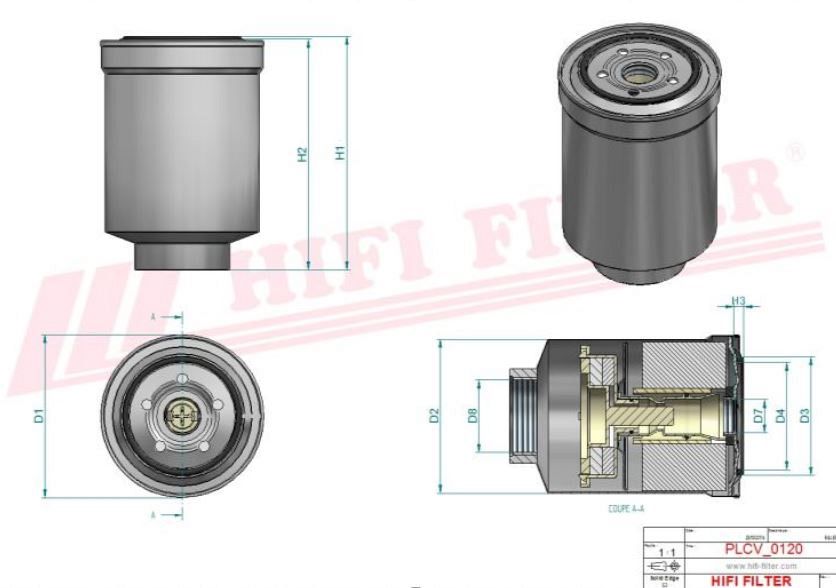

Filter Description	Fuel Filter Spin-on
Height H1	130
Height H2	128
Outside D1	94
Outside D2	85
Gasket OD D3	64
Thread Size D7	3/4-16 UNF
Thread Size D8	M36x1.5
Type	Water Separator

ISEKI - TG6507, TG6687, TH5370, TH5420.

JCB - 100, 135, 150, 155, 175, 210, 215, 406, 407, 525, 531, 67C, 8085, 85Z, 86C, 90Z, Robot 155, TLT35, TM220.

KUBOTA - KX080, R065, R070, R085.

LANDINI - Mistral 2-055, 2-060, 3-080, Rex 3-060, 3-070, 3-080.

MITSUBISHI - ASX, Lancer, Outlander

SUBARU - Forester, Outback, XV.

TOYOTA - 52-8FDF25, Land Cruiser.

WACKER NEUSON - 5075, 5095, ST27, SW21, SW32, TH627, WL1150, WL950.

YANMAR MARINE - 8LV-320, 8LV-350, 8LV-370, Divers
