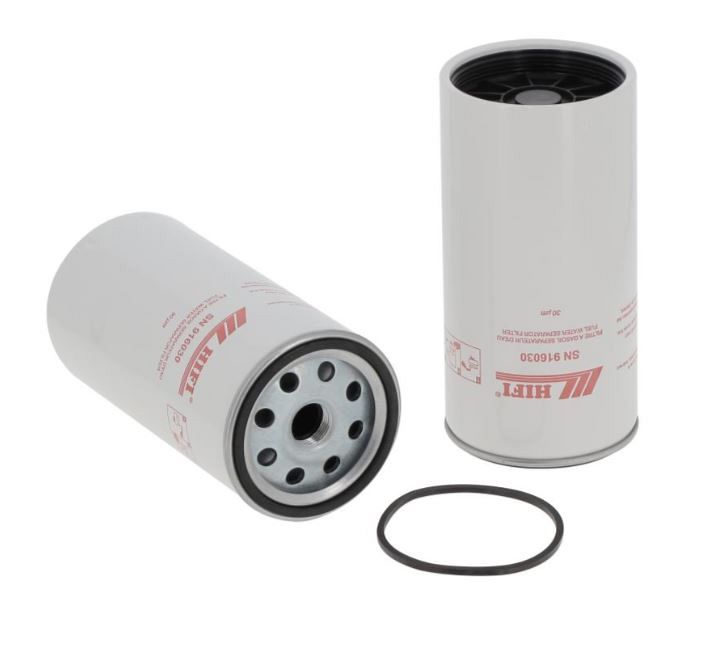

Fuel filter

Part No. 134246 | SN 916030

218x110mm - (1-14 UNF)

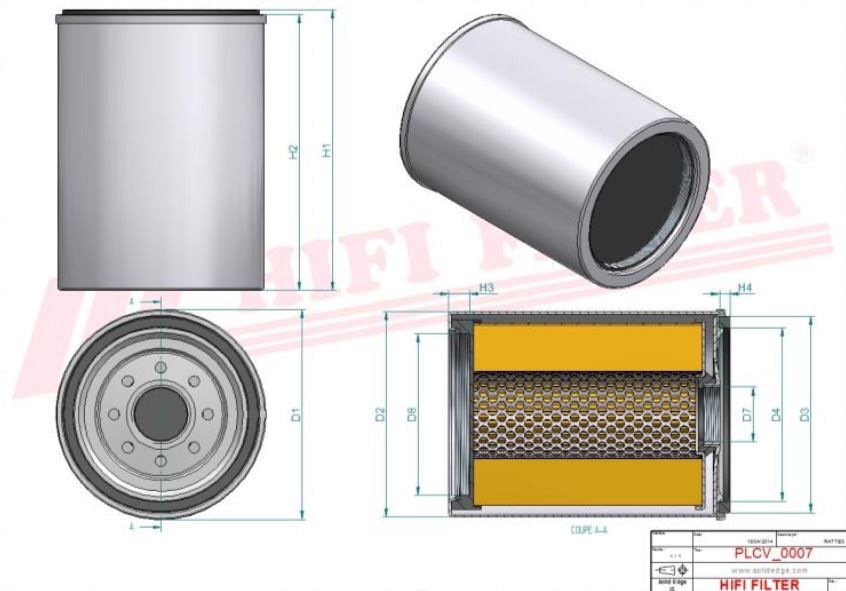

Filter Description	Fuel Filter Spin-on
Height H1	218.5
Height H2	216
Height H3	22.5
Outside D1	110
Outside D2	108
Gasket OD D3	102
Thread Size D7	1"-14 UNF
Thread Size D8	M95x2.5

ATLAS COPCO - QAS150, QAS160, QAS200, QAS250, QAS400, QAS60, XAHS416.

BOMAG - BW161, BW177, BW211, BW216.

DEMAG - AC100, AC300, AC500.

FENDT - Rogator 655.

IVECO - Trakker 190T31, 190T33, 190T36, 260T33, 340T36, 400T36.

MANITOU - MLT634.

MASSEY FERGUSON - 5465, 5475, 6465, 6475, 6480, 6490, 6612, 6613, 6614, 6615, 6616, 6713, 6714, 6715, 6716, 6718, 7465, 7475, 7580, 7485, 7495, 7497, 7499, 7614, 7615, 7616, 7618, 7619, 7620, 7622, 7624, 76226, 7714, 7715, 7716, 7718, 7719, 7720, 7722, 7724, 7726, 8650, 8660, 8670, 8680, 8690, 8727, 8730, 8732, 8735, 8737.

SCANIA - G320, G360, G410, G450, G490, P410, R410, R450, R490, R580.

VOLVO - L160B.
