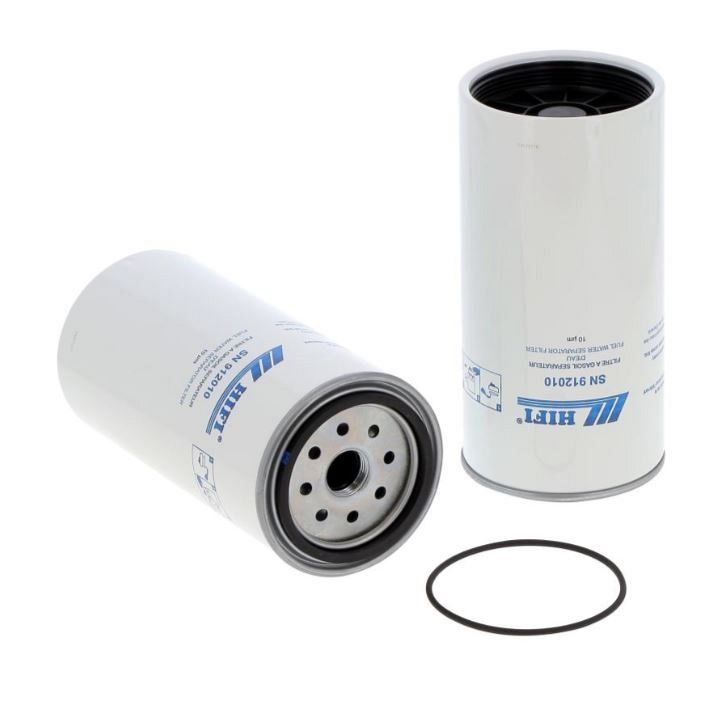

Fuel filter

Part No. 134245 | SN 912010

219x111mm - (1-14 UNF)

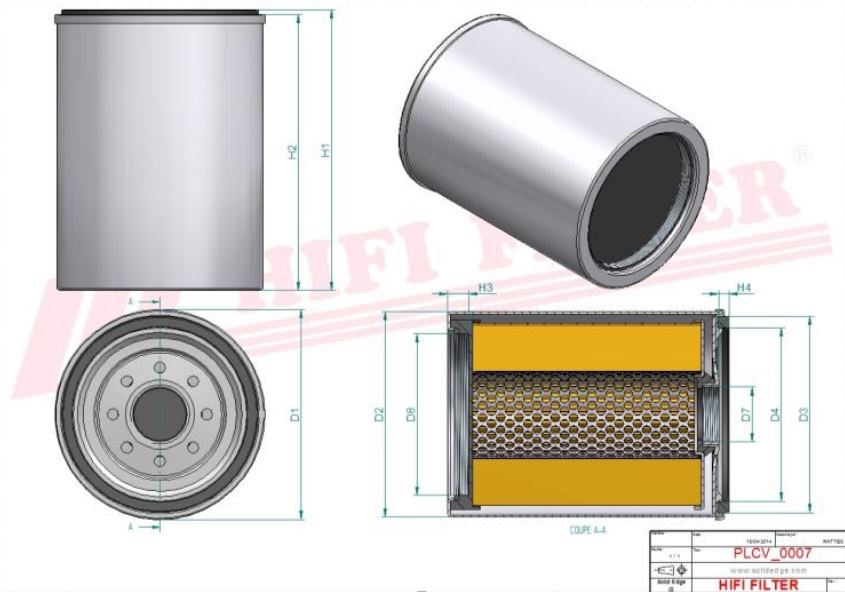

Filter Description	Fuel Filter Spin-on
Height H1	219
Height H2	216
Height H3	19
Outside D1	111
Outside D2	108
Gasket OD D3	90.5
Thread Size D7	1"-14 UNF
Thread Size D8	M95x2.5

ATLAS COPCO - HRHS366, XAHS237, XAHS306, XAHS317, XAHS 336, XASH347, XAHS408, XAHS426, XAHS447, XAHS906, XAMA286, XAMS287, XAMS367, XAMS407, XAS426, XAS746, XATS327, XATS376, XATS377, XATS456, XATS487, XAVS237, XAVS307, XAVS378, XAVS396, XRHS336, XRHS396, XRS396, XRVS336, XRVS466, XRVS476.

CATERPILLAR - 140H, 69D, 725, 730, 735, 740, 775, 826, 836, 900F, AD40, D350E, D400E, D8L, R1300, R1600, R2900.

DYNAPAC - F8C.

HAMM - 3412, 3414, 3516, 3518, 3520.

JOHN DEERE - 1050, 1910, 3510, 6R.540, 7R.210, 7R.230, 7R.250, 7R.270, 7R.290, 7R.310, 7R.330, 7R.350, 8R.230, 8R.250, 8R.280, 8R.310, 8R.340, 8R.370, 8R.410, 8RX.310, 8RX.340, 8RX.370, 8RX.410, 950K/P, 9R440, 9R.490, 9R.540, 9R.590, 9R.640, 9RT.470, 8RT.520, 9RT.570, 9RX.490, 9RX.540, 9RX.590, 9RX.640, CH570, CH670, CP770.

NEW HOLLAND - E385.

TIGERCAT - 620, M760.
